- Model for Savana, Van refrigeration unit
- Driven Type:Engine Direct Driven
- Refrigerant:R134a or R404a
- Installation: Roof mounted condenser
- Application: 2-6.5m³ refrigerated van bodies
Description

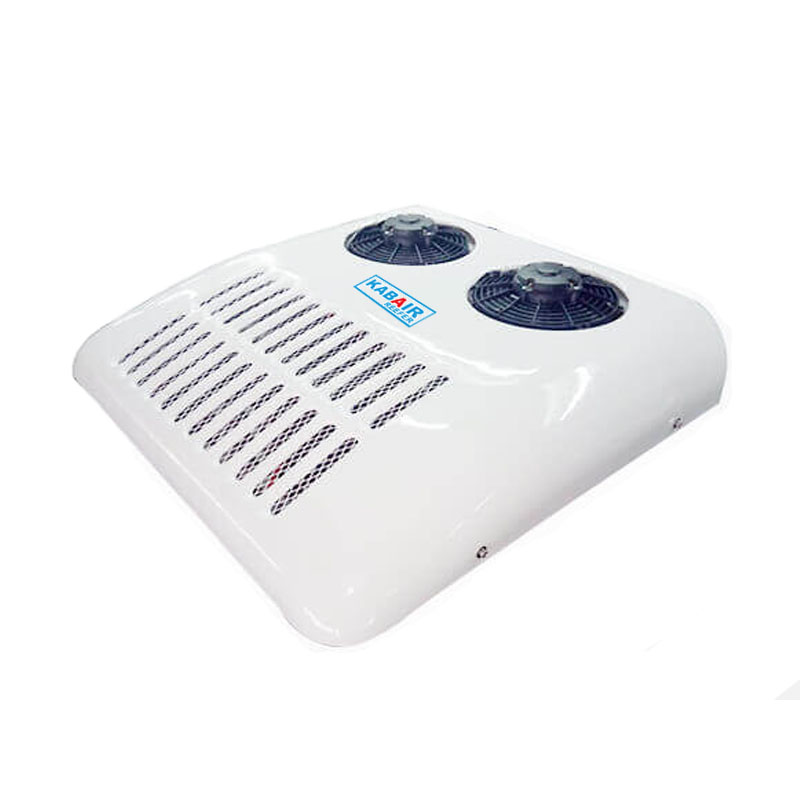

Our savana van refrigeration unit is vehicle engine driven; rooftop mounted, and split system.
The machine key components is using high quality components, the use of green refrigerant R134a/R404a, has chilled or frozen functions, it is small size, cooling fast, precise temperature control, reliable performance.
The refrigeration system is driven by the vehicle engine through a belt of the compressor, and a refrigeration cycle through certain, to achieve rapid temperature decrease in the cabinet, so as to achieve refrigeration, freezing effect.
| Model | Savana | ||
| Temperature rating in container | -20℃～+25℃ | ||
| Voltage | DC12V / DC24V | ||
|
Cooling capacity
|
-5℃ | 2030W | |
| -20℃ | 1420W | ||
| Driven method | Rooftop mounted & Split and vehicle engine driven unit | ||
| Suitable refrigerated cargo box (m3) | 4~ 6.5m³ | ||
| Defrosting function | R404A only (Hot gas defrost (Auto./ Man.) | ||
| Compressor | 108cc/r; 138cc/r | ||
| Refrigerant | R134a/R404a, 1.1kg | ||
| Heating function | Optional | ||
| Controller | Electronic digital controller | ||
|
Dimensions
(mm) |
Evaporator | 857×570×175 | |
| Condenser | 870×865×190 | ||
| Suitable vehicle | Refrigerated cargo vans | ||
