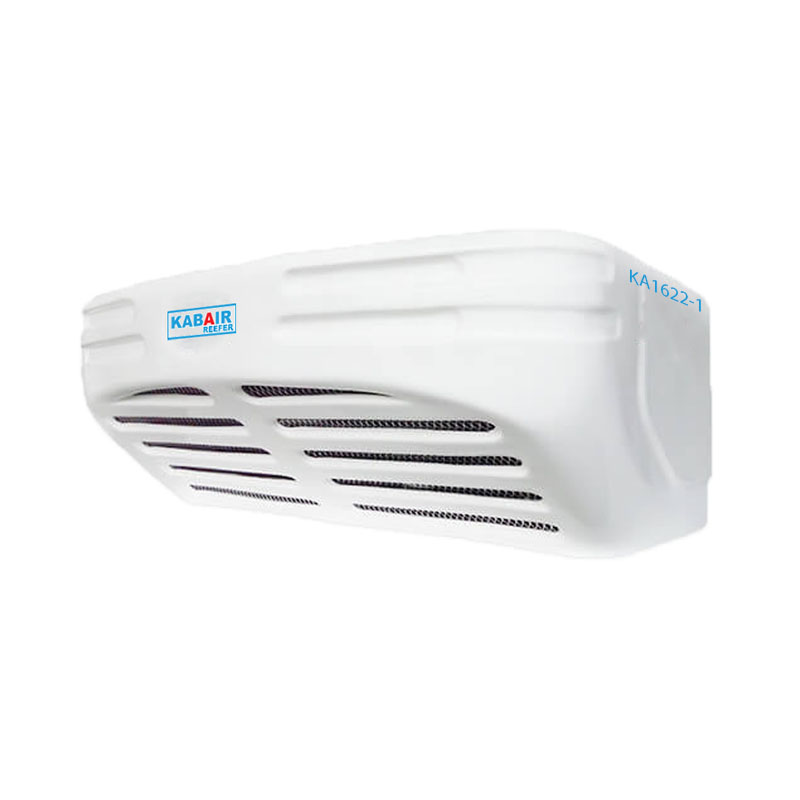

The KA1622-1 truck refrigeration unit is vehicle engine driven, front mounted, and split system.
Model: KA1622-1, Truck refrigeration unit
Driven Type: Engine Direct Driven
Refrigerant: R404a
Installation: Front mounted condenser, evaporator inside the box
Application: 12-18m³ (4.2-5.6m) refrigerated truck bodies
The KA1622-1 truck refrigeration unit is built to last. It is running with the motor of the vehicule. It is front mounted and has a split system.
Our machine keys component is:
Our refrigeration system is driven by the vehicle using the compressor’s belt and passes through refrigeration to obtain rapid temperature decrease in the cabinet. The system makes you achieve refrigeration and freezing effect quicker than any other system.
| Model | KA1622-1 | ||
| Temperature rating in container | -18℃～+25℃ | ||
| Cooling capacity | -18℃ | 2200W | |
| Voltage | DC12V / DC24V | ||
| Driven method | Split and vehicle engine driven unit, and build-in standby power system | ||
| Heating function | Optional | ||
| Engine driven Compressor | 155cc/r | ||
| Standby Power System Compressor | 155cc/r | ||
| Standby Power System Voltage | AC220V/AC380V | ||
| Refrigerant | R404a, 2.2 ~ 2.6kg | ||
| Heating function | Optional | ||
| Defrosting function | Hot gas defrost (Auto./ Man.) | ||
| Dimensions | Evaporator | 1255×585×190 | |
| (mm) | Condenser | 1348×505×502 | |
| Applicable refrigerated truck body | 4.2 ~ 5.6m | ||
