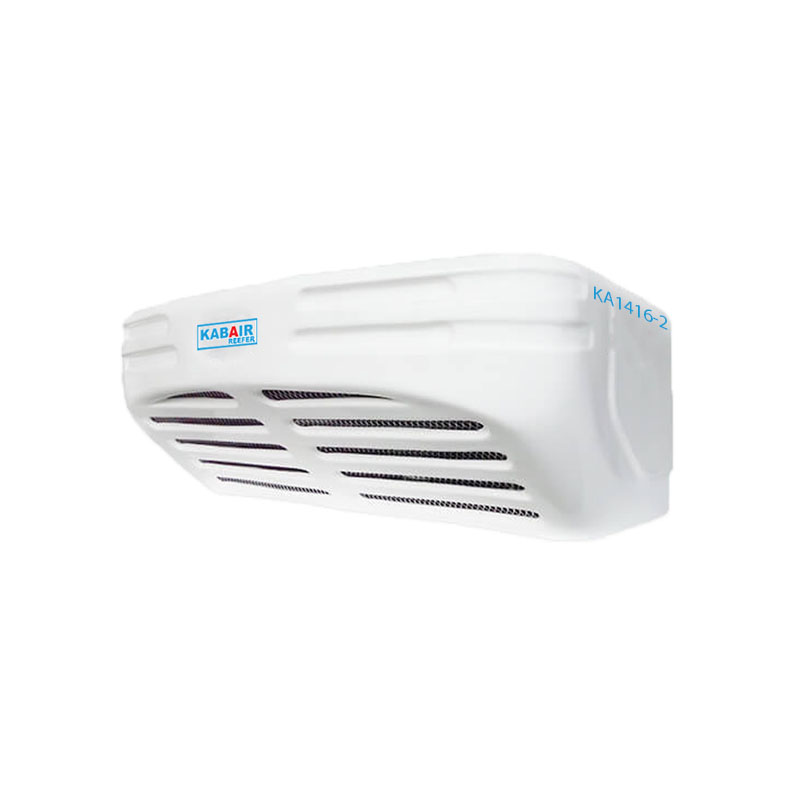

- Model: KA1416-2, DC Powered Air Conditioner
- Product Name: DC powered air conditioner
- Driven Type: Battery Powered Driven
- Installation: Rooftop mounted & mono-block
- Compressor: 15cc/r, or 18cc/r
- Application: Trucks, commercial vehicles, and electric vehicles
Description
The KA1416-2 truck refrigeration unit is built to last. It is running with the motor of the vehicule. It is front mounted and has a split system.
Our machine keys component is:
- High quality component
- Robust building
- Small size
- Cooling fast
- Use of green refrigerant R404a
- Frozen functions
- Precise temperature control
- Reliable performance
Our refrigeration system is driven by the vehicle using the compressor’s belt and passes through refrigeration to obtain rapid temperature decrease in the cabinet. The system makes you achieve refrigeration and freezing effect quicker than any other system.
| Model | KA1416-2 | ||
| Temperature rating in container | -15℃～+25℃ | ||
|
Cooling capacity
|
-5℃ | 1620W | |
| -10℃ | 1450W | ||
| Driven method | Split & front mounted and battery driven unit, build-in DC compressor | ||
| Control voltage | DC12V / DC24V | ||
| Compressor voltage | DC12V / 24V / 48V / 60V / 72V etc. | ||
| Suitable refrigerated cargo box (m3) | 8~ 12m³ | ||
| Defrosting function | R404a Hot gas defrost (Auto./ Man.) | ||
| Build-in Compressor | 15cc/r, 18cc/r, or 26cc/r | ||
| Refrigerant | R134a/R404a, 1.5 ~1.7kg | ||
| Heating function | Optional | ||
| Controller | Electronic digital controller | ||
|
Dimensions
(mm) |
Evaporator | 1020×648×220 | |
| Condenser | 1178×585×403 | ||
| Applicable refrigerated truck body | 2.9 ~ 4.2m | ||
