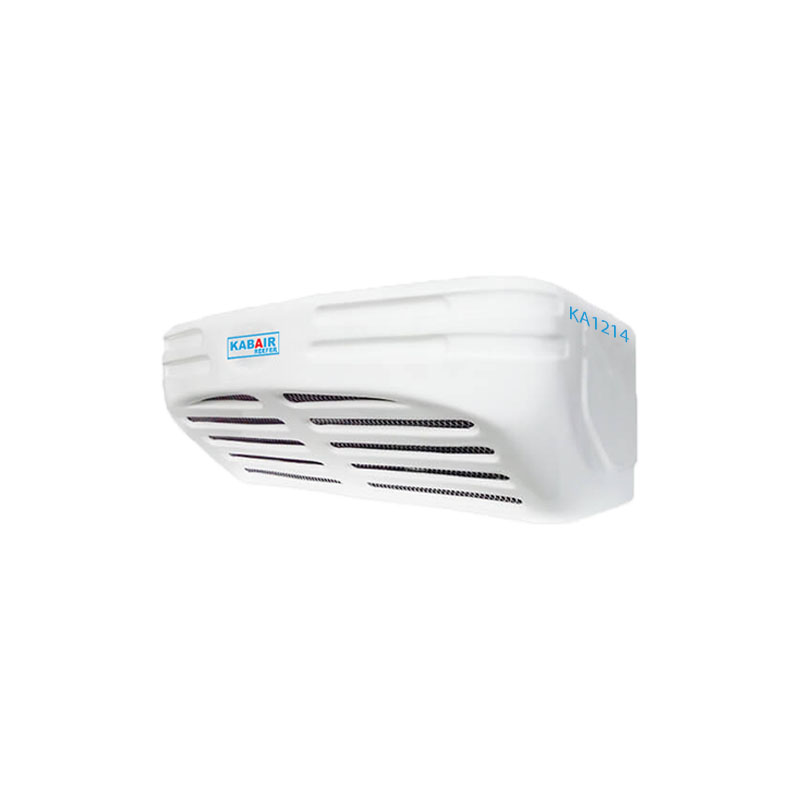

- Model: KA1214, Truck refrigeration unit
- Driven Type:Engine Direct Driven
- Refrigerant:R134a or R404a
- Installation: Front mounted condenser, evaporator inside the box
- Application: 5-11m³ (2.9-3.6m) refrigerated truck bodies
Description
The KA1214 truck refrigeration unit is built to last. It is running with the motor of the vehicule. It is front mounted and has a split system.
Our machine keys component is:
- High quality component
- Robust building
- Small size
- Cooling fast
- Use of green refrigerant R134a/R404a
- Frozen functions
- Precise temperature control
- Reliable performance
Our refrigeration system is driven by the vehicle using the compressor’s belt and passes through refrigeration to obtain rapid temperature decrease in the cabinet. The system makes you achieve refrigeration and freezing effect quicker than any other system.
| Model | KA1214 | ||
| Temperature rating in container | -20℃～+25℃ | ||
|
Cooling capacity
|
-5℃ | 3100W | |
| -20℃ | 2200W | ||
| Voltage | DC12V / DC24V | ||
| Driven method | Split and vehicle engine driven unit | ||
| Suitable refrigerated cargo box (m3) | 5~ 12m³ | ||
| Defrosting function | R404A only (Hot gas defrost (Auto./ Man.) | ||
| Compressor | 138cc/r | ||
| Refrigerant | R134A/R404a, 1.2kg | ||
| Heating function | Optional | ||
| Controller | Electronic digital controller | ||
|
Dimensions
(mm) |
Evaporator | 857×570×175 | |
| Condenser | 780×450×381 | ||
| Applicable refrigerated truck body | 2.9 ~ 3.6m | ||
