Products: KABAIR 10RT

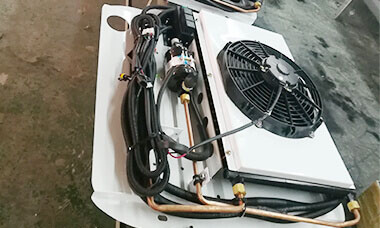

The transit van refrigeration unit is vehicle engine driven; rooftop mounted, and split system.

The machine key components is using high quality components, the use of green refrigerant R134a/R404a, has chilled or frozen functions, it is small size, cooling fast, precise temperature control, reliable performance.

The refrigeration system is driven by the vehicle engine through a belt of the compressor, and a refrigeration cycle through certain, to achieve rapid temperature decrease in the cabinet, so as to achieve refrigeration, freezing effect.

STANDARD FEATURES

  • Model: KABAIR 10RT, Van refrigeration unit
  • Driven Type:Engine Direct Driven
  • Refrigerant:R134a or R404a
  • Installation: Roof mounted condenser
  • Application: 2-4m³ refrigerated van bodies
Easy installation
Full digital control
Perfect for small refrigerated truck

SPECIFICATION

ModelKabair 10RT
Cooling capacity
-5℃1630W
-15℃1033W
Temperature rating in container-15℃~+25℃
VoltageDC12V / DC24V
Driven methodRooftop mounted & Split and vehicle engine driven unit
Suitable refrigerated cargo box (m3)2~ 4m³
Defrosting functionR404A Hot gas defrost (Auto./ Man.)

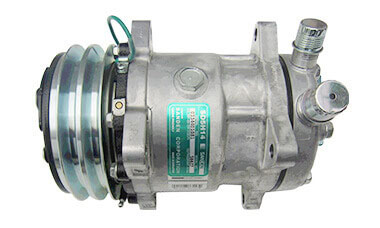

Compressor96cc/r; 108cc/r
RefrigerantR134a/R404a, 0.9kg
Heating functionOptional

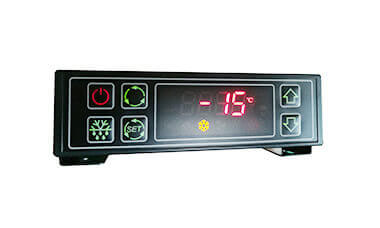

ControllerElectronic digital controller
Dimensions
(mm)
Evaporator610×530×160
Condenser700×700×185
Suitable vehicleRefrigerated cargo vans
